Specification :

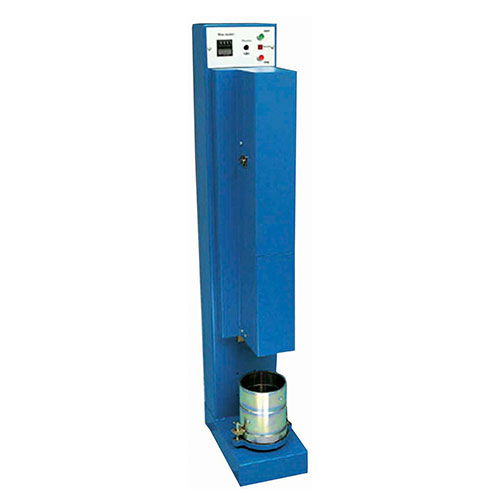

Elite Lab is manufacturer and Supplier of Automatic Soil Compactor in West Bengal, Bihar, Jharkhand, Kolkata, Patna and Ranchi India. If you're looking to get accurate and repeatable test results, you may use the Automatic Soil Compactor to compress standard and modified CBR specimens.

The compactor is easy to use, has a straightforward menu system, and needs little to no upkeep.

It has a digital counter that may be set to stop the unit when a certain number of blows are received. The height and weight of the rammer may be modified to suit the requirements of various tests. In spite of intensive usage, high-quality components and precise mechanical workings provide a long-life span.

At any one predetermined height: 300mm and 450mm, the innovative lift mechanism of the rammer ensures an exact and steady fall for the operator. According to the standard, circular rammer heads may be attached with diameters of 50 mm or 50.8 mm, depending on the kind of circular rammer. Elite Lab is also leading exporter of Automatic Soil Compactor in Kolkata India.

Dirt layers are efficiently and equally compacted by rotating the base table in equal steps, and by moving rammer over each layer of soil in the same manner.

The mould is rotated evenly by the table using the digital counter, and the number of blows per layer may be changed before the table spins the mould at the start of the test. Additionally, the blow number and in-out distribution may be changed by the user. In addition to the blow counter, there are buttons for beginning, halting, and stopping in an emergency case.

The rammer's face is round in form. The rammer's weight may be set to 2.5 kg or 4.5 kg, depending on the standard used. As a result, the unit acts on a single radius while compacting examples in Standard Proctor moulds; however, when compressing specimens in Modified Proctor or CBR moulds, the unit functions to produce equal compaction.

Using the digital screen on the side of the device, Automatic Soil Compactor Manufacturers in Bihar, Jharkhand, West Bengal, Kolkata, Ranchi, Patna may choose the mould, the number of blows, the count of the number of inner and outside drops, as well as four separate programmes established in accordance with industry standards, all from the comfort of their own home.
